Outdoor ArchitecturalLED Linear StripModel: LLS-OP-W30A

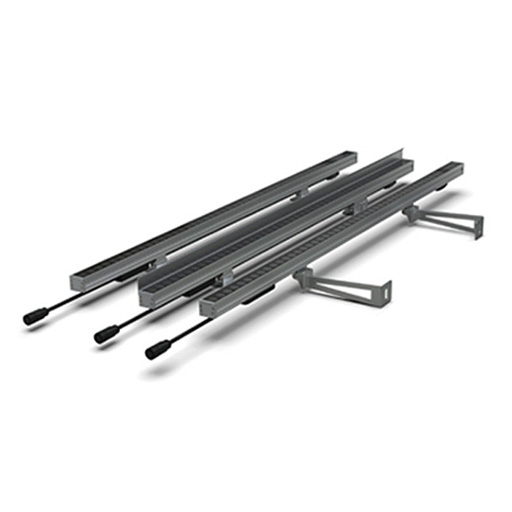

LLS-OP-W30A 12–24W IP66 ETL listed outdoor LED linear strip for architectural outline lighting

LLS-OP-W30A

12–24W IP66 LED Linear Strip — ETL Listed, CE Certified

The LLS-OP-W30A is a 12–24W IP66 outdoor LED linear strip designed for architectural outline lighting, building contour definition, and facade accent. ETL listed for North America and CE certified for Europe. The wide 150° diffuse beam through a UV-resistant PC lens creates uniform, glare-controlled linear light. Available in static white (2700K–5700K) and RGBW, with DMX512/RDM dimming integration. Spring-clip installation brackets suit narrow-slit mounting positions. Available in two standard project lengths: 615mm and 1220mm.

LLS-OP-W30A LED linear strip dimension drawing and installation overview
IP66Outdoor protection
IK06Impact resistance
ETLUS & Canada projects
CEEuropean compliance
3-YearWarranty support

Color & Optic

Color Options

2700K
3000K
4000K
5700K
RGBW
Static white range 2700K–5700K. Custom CCT available.

Beam Angle

150 degree wide diffuse beam
150°

Wide 150° diffuse beam via UV-resistant PC lens. Delivers uniform linear illumination across building outlines, cove channels, and facade contour strips without hot spots.

Product Specifications

Power12W / 24W
LED TypesSMD2835
ColorStatic White / RGBW
Input Voltage24V DC / 100–277V AC
Housing MaterialAluminum alloy 6063 / silver
Cover LensPC + UV resistant
Control ModeDMX512 / RDM / Steady
Beam Angle150°
IP RatingIP66
Impact RatingIK06
Size615 / 1220mm × W30mm
Lifetime50,000 hrs
Warranty3 years
Operating Temperature−20°C to +40°C

Model Configuration

Model Length Power (Max) Color Options Lumen Output Packing Info
LLS-OP-W30A-L6 L615mm 12W
2700K3000K
4000K5700K
RGBW
480lm
300lm
 Weight: 0.58kg ±5%Qty/Ctn: 40 Units/CtnCarton: 125.5 × 32 × 23 cm
LLS-OP-W30A-L12 L1220mm 24W
2700K3000K
4000K5700K
RGBW
960lm
600lm
 Weight: 1.16kg ±5%Qty/Ctn: 20 Units/CtnCarton: 125.5 × 32 × 23 cm

Lumen configurations based on standard models. All variants: IP66, IK06, ETL listed, CE certified, 3-year warranty.

Advantages

UV-Resistant PC Diffuser

High-quality PC diffusive cover is UV-resistant and anti-yellowing, transmitting light without hot spots for even linear output across the full length. Ensures uniform 150° light distribution.

Full-Structure Waterproofing

Structural waterproofing from end cap to body delivers IP66 protection — fully dust-tight and resistant to high-pressure water jets — for long-term outdoor installation without service interruption.

DMX512 / RDM Control

Supports DMX512/RDM for dynamic color programming across RGBW channels. Spring-clip T-cable connectors keep wiring fast and organized on large architectural runs.

Corrosion-Resistant Aluminum Structure

Extruded 6063 aluminum profile with anti-oxidation surface treatment combines high thermal conductivity for stable LED junction temperatures with reliable outdoor corrosion resistance.

Spring-Clip Installation

Spring-clip bracket solution installs into narrow slit positions where conventional mounting hardware can't reach — cove channels, glazing rebates, and concealed linear reveal details.

50,000-Hour Rated Lifetime

Rated at 50,000 hours with a 3-year full-assembly warranty. Operating temperature range −20°C to +40°C. Robust construction for diverse commercial applications.

Impressions

LED linear strip architectural outline lighting impression | TPK Lighting
LED linear strip outdoor facade lighting impression | TPK Lighting

Downloads

Specification Sheets

Certification Documents

Technical Files

Testing Reports & Application Media

Certifications & Compliance

ETL North America ETL listed for US and Canada project documentation. Meets ANSI/UL outdoor luminaire safety standards. Download ETL certificate CE European Market Certified for European LVD and EMC requirements. Available for project submittal packages. Download CE certificate
RoHS Environmental Compliance Restriction of hazardous substances documentation available with product files on request. Available with product files

Related Projects

Zhongshan Electronic Incubation Base facade lighting project | LED linear strip by TPK Lighting
Zhongshan Electronic Incubation Base

DMX512 pixel dots and LED linear strips recreate circuit-board patterns across a dynamic commercial facade.

Commercial Facade Lighting

Zhongshan Electronic Incubation Base

Zhongshan, China
Sichuan Luojiang Student Incubation Base LED linear strip lighting | TPK Lighting
Luojiang Student Incubation Base

LED linear strips seamlessly outline traditional residential roof ridges and architectural frames.

Architectural Outline Lighting

Luojiang Student Incubation Base

Luojiang, Sichuan, China
Live! Casino & Hotel facade lighting system | LED linear strip by TPK Lighting
Live! Casino & Hotel

ETL-certified DMX512 RGB linear lighting system effectively outlines architectural boundaries across multiple floors.

Building Facade Lighting

Live! Casino & Hotel

United States

FAQ

Model: LLS-OP-W30A
What is the IP rating and lifetime of the LLS-OP-W30A?
The LLS-OP-W30A is rated IP66 — fully dust-tight and resistant to high-pressure water jets from any direction — and is rated for 50,000 hours of operation. It carries a standard 3-year full-assembly warranty. Operating temperature range is −20°C to +40°C.
Is the LLS-OP-W30A ETL listed for North American projects?
Yes. The LLS-OP-W30A carries ETL listing for US and Canada projects. The ETL certificate PDF is available on this page for submittal packages. Contact ES2@topkinglite.com for project-specific documentation.
What control options does the LLS-OP-W30A support?
The LLS-OP-W30A supports DMX512/RDM for dynamic RGBW programming across multiple zones, and steady color mode (power on/off) for static effects. Input voltage options are 24V DC and 100–277V AC depending on the project requirement.
What does the 150° beam angle mean for this fixture?
The 150° diffuse beam is produced by the UV-resistant PC lens, which spreads light broadly without visible hot spots. This makes the W30A well-suited for outline lighting and cove channels where you want a smooth, even glow rather than a directional wash. It is not designed for long-throw projection.

Accessories

Accessories available per installation method, wiring layout, and control configuration.

LLS-OP-W30A accessory - End Cap
End Cap
Fixture end protection
LLS-OP-W30A accessory - Signal Input Cable
Signal Input Cable
DMX / signal input
LLS-OP-W30A accessory - Adapter Cable
Adapter Cable
Power or signal transition
LLS-OP-W30A accessory - T-Cable
T-Cable
Branch wiring connection
LLS-OP-W30A accessory - Waterproof Connector
Waterproof Connector
Outdoor cable sealing
