Outdoor ArchitecturalLED FloodlightModel: SP-F310A/B

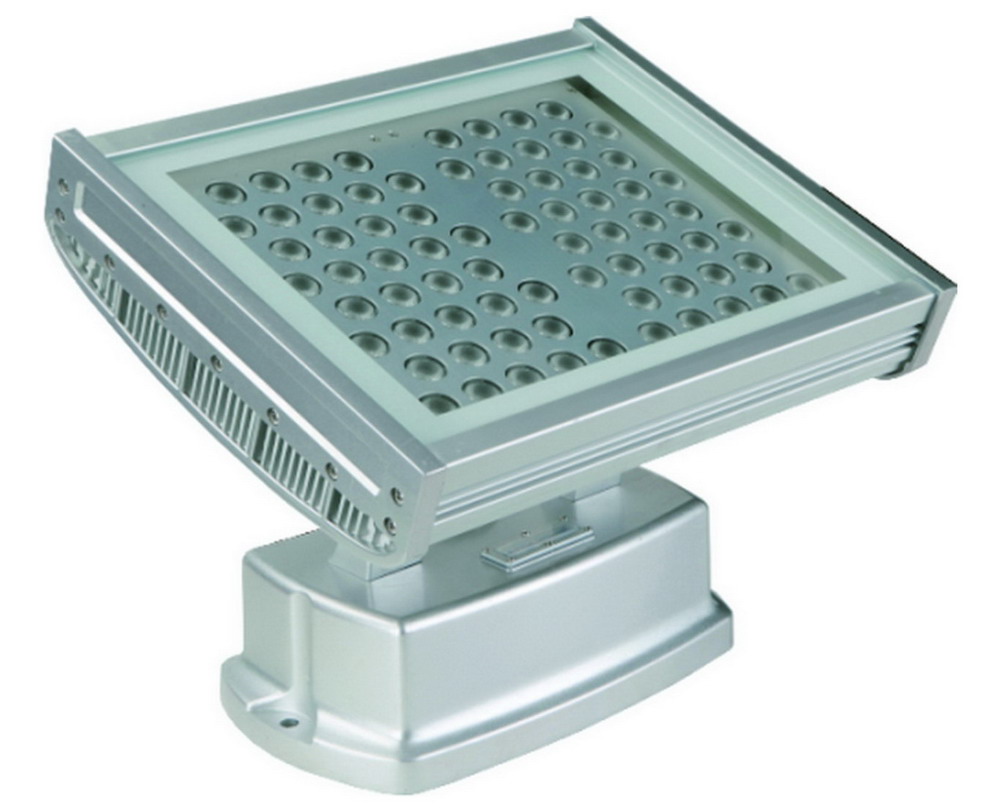

SP-F310A 75-150W IP65 LED floodlight for architectural facade lighting

SP-F310A/B

75–150W IP65 LED Floodlight — ETL Listed, CE Certified

The SP-F310 series is a high-power outdoor architectural LED floodlight offered in two variants: Model A (integrated design) and Model B (split luminaire and power supply). Both deliver 75–150W with IP65 structural waterproofing, IK08 impact resistance, and DMX512/RDM control. Available in RGB, RGBW, and tunable white configurations with multiple beam angles, these fixtures are ideal for building facade, landscape, and large-area lighting installations.

SP-F310A integrated LED floodlight dimension drawing

SP-F310B (Split Design)

Unlike the integrated Model A, Model B features a split design: the luminaire and power supply are installed separately and connected via a connecting cable, offering greater installation flexibility for complex outdoor environments.

SP-F310B split design LED floodlight dimension drawing
IP65Outdoor Protection
IK08Impact Resistance
ETLNorth America
CEEuropean Compliance
3-YearWarranty Support

Color & Optic

Color Options

2200K
2700K
3000K
3500K
4000K
6500K
RGB
RGBW
Color temperature customizable

Beam Options

8 degree beam angle
8°
15 degree beam angle
15°
20 degree beam angle
20°
25 degree beam angle
25°
30 degree beam angle
30°
45 degree beam angle
45°
60 degree beam angle
60°
30x50 degree beam angle
30×50°
Optic customizable

Product Specifications

Power75W / 150W
LED Types3535 / 5050
ColorRGBW 4-in-1
LED Quantity36P / 72P / 40P (8°)
Input Voltage100-277V AC
Housing MaterialAluminum Alloy 6063
Waterproof MeasureStructural waterproof
Control ModeDMX512 / RDM
Beam Angle8° / 15° / 20° / 25° / 30° / 35° / 45° / 60° / 30×50°
IP RatingIP65
Protection LevelIK08
Span Life30,000 hours
Size (72P)L400 × W320 × H290 mm
Weight11–14.5 kg ±5%
Warranty3 years
Environment Temperature−20°C to +45°C

Model Configuration

Model Length Power (Max) Color Options Lumen Output Packing Info
SP-F310A-36P L270mm 75W
2700K 3000K 4000K 5700K RGB
4200lm 4500lm 3183lm
 Weight: 11kg ±5%Qty/Ctn: 1Units/CtnCarton: L40 × W38 × H40 cm
SP-F310A-72P L400mm 150W
2700K 3000K 4000K 5700K RGB
6500lm 7000lm 4994lm
 Weight: 14.5kg ±5%Qty/Ctn: 1Units/CtnCarton: L50 × W45.5 × H30 cm
SP-F310B-36P L270mm 75W
2700K 3000K 4000K 5700K RGB
4200lm 4500lm 3183lm
 Weight: 11kg ±5%Qty/Ctn: 1Units/CtnCarton: L40 × W38 × H40 cm
SP-F310B-72P L400mm 150W
2700K 3000K 4000K 5700K RGB
6500lm 7000lm 4994lm
 Weight: 14.5kg ±5%Qty/Ctn: 1Units/CtnCarton: L50 × W45.5 × H30 cm
SP-F310A-40P L400mm 150W
RGBW (4in1)
11930lm
 Weight: 14.5kg ±5%Qty/Ctn: 1Units/CtnCarton: L50 × W45.5 × H30 cm

Configuration summary: SP-F310A (integrated) and SP-F310B (split) versions, 75W and 150W power levels, RGB and RGBW options, multiple beam angles, DMX512/RDM control, IP65, IK08, ETL listed and CE certified.

Advantages

High-Efficiency Power Output

Up to 150W high brightness with low energy consumption, meeting the lighting needs of large areas efficiently.

DMX512 / RDM Control

High-voltage input with DMX512/RDM for flexible, precise operation and dynamic lighting effects.

Narrow Beam Angle Option

8° narrow beam available, with excellent color mixing in RGBW mode for focused illumination.

Sturdy Construction

6063 aluminum alloy body with anti-oxidation surface treatment, delivering high heat dissipation and corrosion resistance.

High Power and Cost-Effective

Maximum power up to 150W, providing an outstanding cost-performance ratio for architectural projects.

3-Year Warranty

Standard 3-year warranty covering the complete assembly under normal outdoor operating conditions.

Application Scenarios

Building Facade Lighting

For commercial building facades, curtain walls, and architectural structures requiring high-power, dynamic color illumination and precise beam control.

Bridge and Infrastructure Lighting

For bridge structures, guardrails, and large public infrastructure projects where high output and weather resistance are essential.

Landmark and Landscape Lighting

For national landmarks, towers, parks, and public plazas where high-power RGBW and beam shaping create iconic nightscapes.

Hotel and Retail Exterior Lighting

For hotel entrances, retail facades, and commercial plazas requiring warm white and dynamic color atmospheres.

SP-F310 series is designed for permanent outdoor architectural lighting projects where high power, beam control, weather resistance and dynamic color are critical.

Impressions

SP-F310 LED floodlight architectural lighting effect
LED floodlight facade lighting application

Downloads

Specification Sheets

Certification Documents

Technical Files

Testing Reports & Application Media

Certifications & Compliance

ETLETL ListedNorth American market compliance. ANSI / UL safety standard for outdoor architectural fixtures. Suitable for projects in the United States and Canada.Download ETL certificate
CECE CertifiedEuropean market compliance. Low Voltage and EMC documentation for outdoor architectural fixtures.Available with documentation
RoHSRoHS CompliantEnvironmental compliance. Restriction of hazardous substances documentation included with product files.Available with documentation

Related Projects

Volgograd Bridge dynamic facade lighting Russia by TPK Lighting
Volgograd Bridge

Dynamic facade lighting enhances the bridge structure and creates an iconic night landmark in Russia.

Bridge Lighting

Volgograd Bridge

Volgograd, Russia
Torre Bavaria Building facade lighting project Colombia by TPK Lighting
Torre Bavaria Building

Highlighting the building's facade with vibrant dynamic color for a striking nighttime landmark.

Building Facade

Torre Bavaria Building

Colombia
Turkmenistan National Tower landmark lighting project by TPK Lighting
Turkmenistan National Tower

RGBW building illumination for a national monument and dynamic public nightscape.

Landmark Lighting

Turkmenistan National Tower

Ashgabat, Turkmenistan

FAQ

Model: SP-F310A/B
What is the IP rating of the SP-F310A/B?
The SP-F310A/B carries an IP65 rating, meaning it is fully dust-tight and protected against low-pressure water jets. Its structural waterproof design makes it suitable for permanent outdoor architectural installations in all weather conditions.
Is the SP-F310A/B ETL certified for North American projects?
Yes. The SP-F310 series is ETL listed and can support projects in the United States and Canada. The ETL certificate is available for download on this page or can be requested via ES2@topkinglite.com.
What control systems are compatible with the SP-F310A/B?
The SP-F310 series supports DMX512/RDM for dynamic RGB and RGBW color programming. It operates on a wide voltage range of 100-277V AC, making it compatible with global electrical standards.
What warranty does the SP-F310A/B carry?
TPK provides a standard 3-year warranty covering the complete SP-F310 assembly under normal outdoor installation and operating conditions. The rated lifespan is 30,000 hours at an operating temperature range of −20°C to +45°C.
What is the difference between SP-F310A and SP-F310B?
The SP-F310A features an integrated design where the luminaire and power supply are combined in a single housing. The SP-F310B has a split design, with the power supply installed separately and connected via a cable, offering greater installation flexibility for complex environments.

Accessories

Accessories can be supplied according to installation method, wiring layout and control configuration.

SP-F310 end cap accessory
End Cap
Fixture end protection
SP-F310 signal input cable accessory
Signal Input Cable
DMX / signal connection
SP-F310 adapter cable accessory
Adapter Cable
Power or signal adaptation
SP-F310 Y-type cable accessory
Y-Type Cable
Branch wiring support
SP-F310 waterproof connector accessory
Waterproof Connector
Outdoor connection sealing
