Outdoor ArchitecturalLED Spot LightModel: SP-DKP-F170

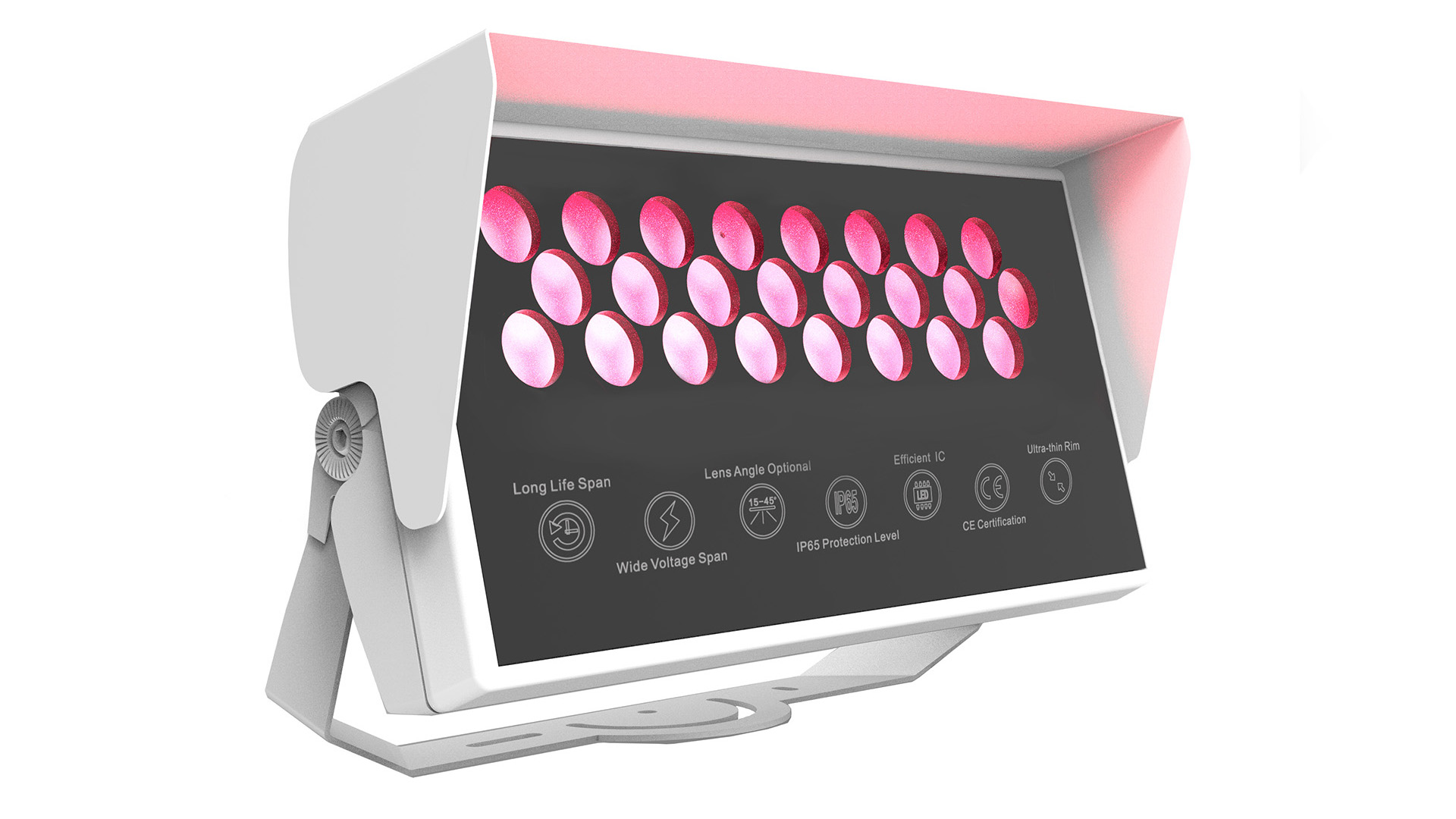

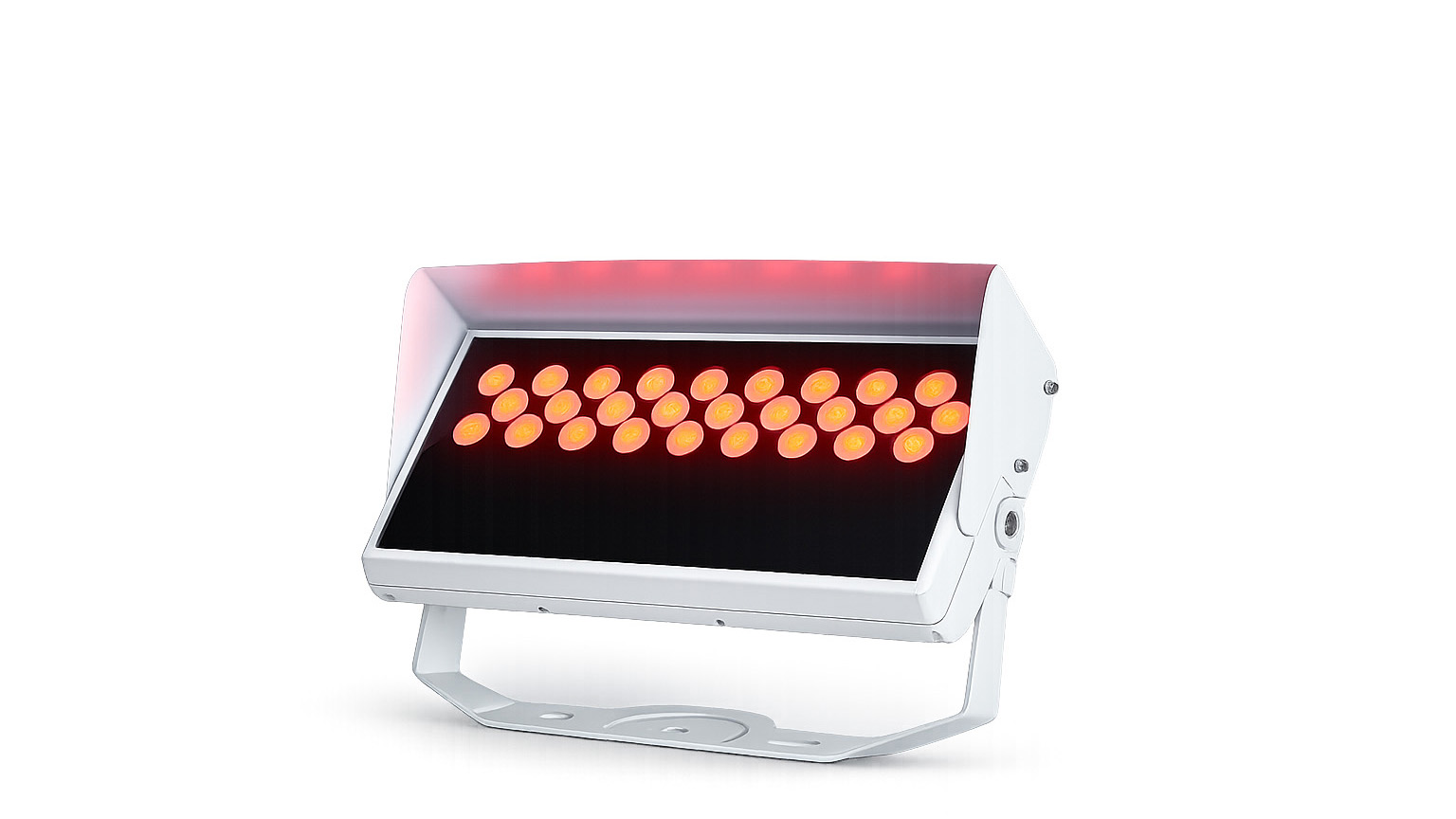

TPK SP-DKP-F170 IP66 LED spot light for architectural lighting

SP-DKP-F170

High-Power IP66 LED Spot Light — 180° Vertical Rotation

The SP-DKP-F170 is a robust outdoor architectural LED spot light designed specifically for decorating and highlighting building frames, structural pillars, and garden landscapes. Encased in a durable aluminum alloy shell with an IP66 rating, it operates seamlessly in both independent and DMX control modes. Capable of generating thousands of programmable color-changing effects via its RGBW-4in1 setup, it stands as an exceptional solution for dynamic outdoor floodlighting.

SP-DKP-F170 Spot Light structural overview
IP66Outdoor protection
IK08Impact resistance
CEEuropean standard
RoHSEco-friendly
5-YearWarranty support

Color & Optic

Color Options

2700K
3000K
4000K
6000K
RGB
RGBW
Supports dynamic DMX programmable color mixing

Beam Options

15 degree beam angle
15°
20 degree beam angle
20°
30 degree beam angle
30°
45 degree beam angle
45°
60 degree beam angle
60°
15 by 35 degree beam angle
15×35°
15 by 40 degree beam angle
15×40°
20 by 60 degree beam angle
20×60°
A wide range of symmetric and asymmetric optical lenses available

Product Specifications

Power40W
LED TypesSMD3535
ColorStatic White / RGB / RGBW-4in1
Quantity of LED24P / 36P
Input Voltage100–240V AC / 100–277V AC
Housing MaterialAluminum alloy + tempered glass
Waterproof MeasureStructural waterproof
Control ModeON/OFF / DMX / RDM / DALI / 0–10V
Beam Angle15°/20°/30°/45°/60°/15×35°/15×40°/20×60°
IP RatingIP66
Protection LevelIK08
Span Life30,000 hours

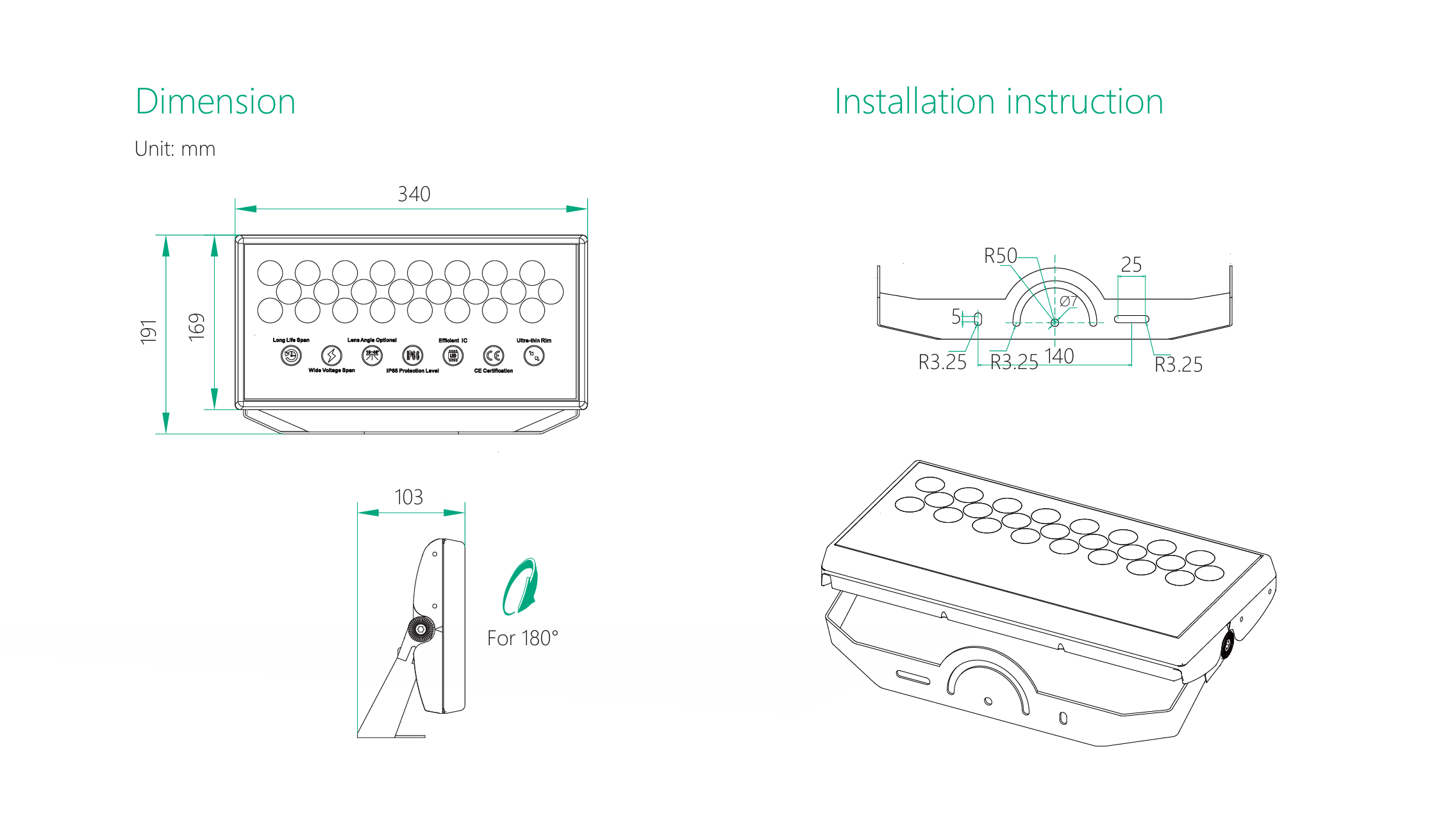

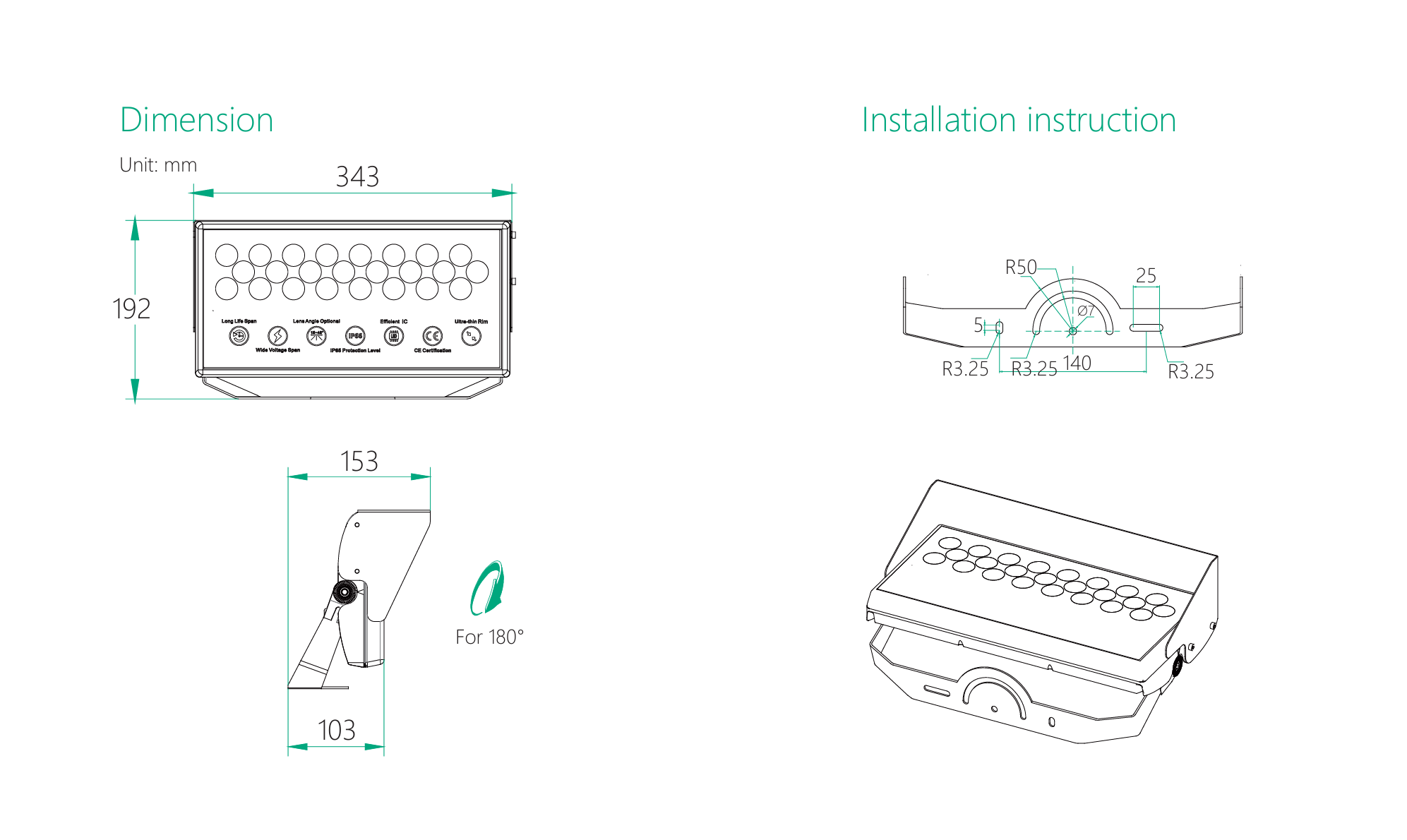

SizeL340 × W191 × H103 mm
Weight3.3kg / 4.3kg ±5%
Warranty3 years / 5 years
Environment Temperature−20°C to +40°C

Model Configuration

Model Length Power Color Options Lumen Output Packing Info
SP-DKP-F170-24P L340mm 40W RGBW (4in1) 1754 lm Weight: 3.3kg ±5%Qty/Ctn: 4 pcsCarton: 53 × 44 × 33 cm
SP-DKP-F170-36P L340mm 40W
2700K 3000K 4000K 6000K RGB
2300 lm 2400 lm 1850 lm
 Weight: 4.3kg ±5%Qty/Ctn: 4 pcsCarton: 53 × 44 × 33 cm

Configuration summary: Constant power mode, available in 24P and 36P configurations with multiple color options (2700K–6000K, RGB, RGBW-4in1) and robust IP66 protection.

Advantages

180° Vertical Adjustment

Equipped with a highly flexible mounting bracket that allows a 180-degree vertical rotation, ensuring precise targeting of architectural features.

DMX512 Intelligent Control

Compatible with standard DMX dimmer systems, enabling dynamic synchronization, fading, and thousands of programmable color-changing effects.

Optics and Distributions for All Occasions

Offers multiple precision beam angles ranging from narrow 15° to very wide flood 60° and asymmetric lenses to cater to diverse architectural occasions.

Weather-resistant

High-quality aluminum heat dissipation design with an IP66 rating, suitable for permanent outdoor use and capable of withstanding various harsh weather conditions.

Control Flexibility

Go the distance and use your favorite control protocols, including independent, DMX, RDM, 0–10V, and DALI control configurations.

Premium Heat Dissipation

The thick aluminum alloy shell provides superior thermal management, preventing overheating and extending the lifespan of the LED chips up to 30,000 hours.

Application Scenarios

Building Frame Highlighting

Perfect for shooting powerful beams up structural pillars, towers, and modern building facades to emphasize architectural height.

Garden & Landscape

Ideal for illuminating large trees, sculptures, and park monuments with vibrant, programmable RGBW colors.

Bridge and Infrastructure Lighting

Suitable for highlighting bridge suspension cables, tunnels, guardrails, and defining municipal infrastructure elements.

Hotel and Retail Exterior Lighting

Perfect for decorative wall layouts, hotel entrance highlights, and elevating the aesthetics of high-end retail venues.

The SP-DKP-F170 is designed for versatile outdoor architectural lighting projects where customizable optics, reliable IP66 weather resistance, and dynamic DMX control are required.

Impressions

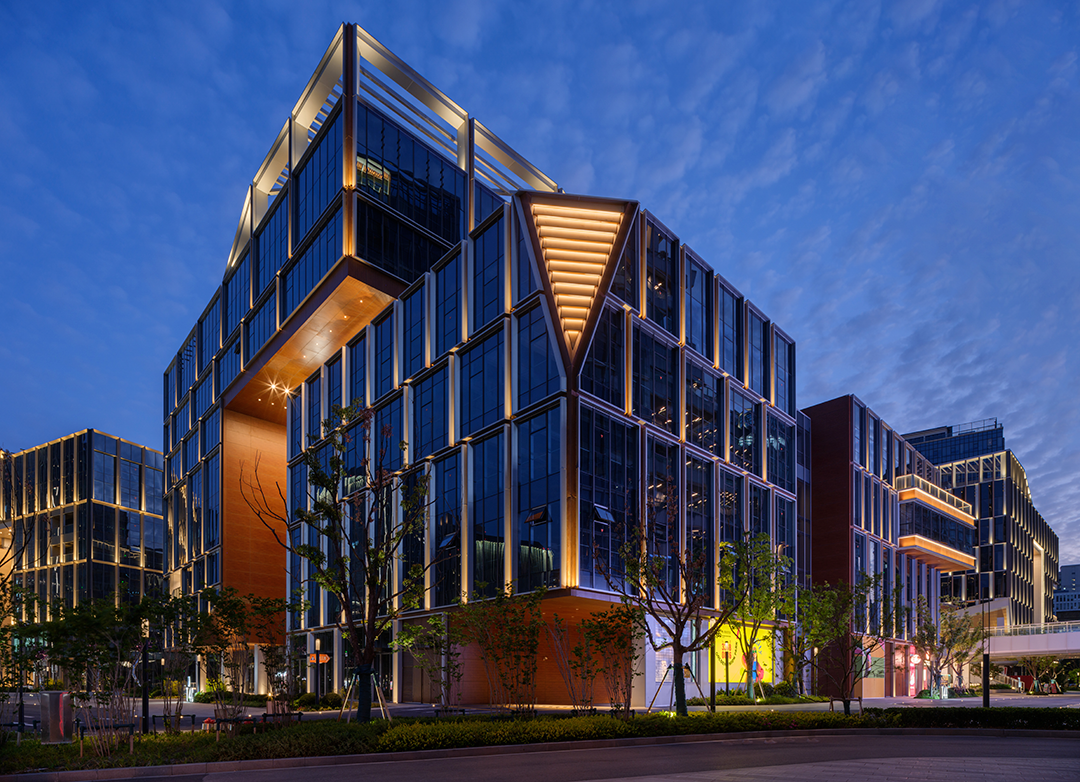

Impression 1 LED spot light lighting effect for building facade project

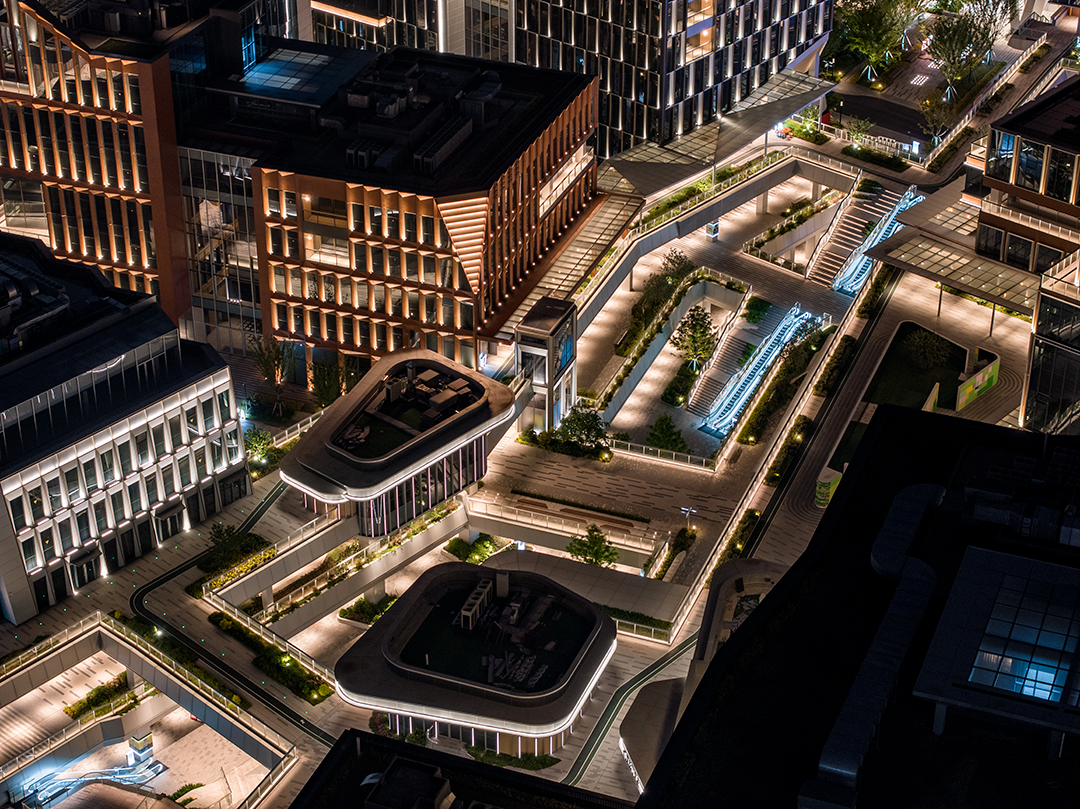

LED spot light beam effect for architectural highlighting
Outdoor LED spot light facade lighting impression

Downloads

Specification Sheets

Certification Documents

Technical Files

Testing Reports & Application Media

Certifications & Compliance

ETLETL ListedNorth America projects. ANSI / UL safety documentation for outdoor lighting fixtures.Download certificate
CECE CertifiedEuropean market compliance. Low Voltage and EMC documentation for outdoor architectural fixtures.Download certificate
RoHSRoHS CompliantEnvironmental compliance. Restriction of hazardous substances documentation included with product files.Available with documentation

Related Projects

Turkmenistan National Tower landmark lighting RGBW by TPK Lighting
Turkmenistan National Tower

RGBW building illumination for a national landmark and public nightscape.

Landmark Lighting

Turkmenistan National Tower

Ashgabat, Turkmenistan
Volgograd Bridge bridge lighting project Russia by TPK Lighting
Volgograd Bridge

Dynamic bridge lighting enhances structure and creates an iconic night landmark.

Bridge Lighting

Volgograd Bridge

Volgograd, Russia
New World Hotel landscape lighting project by TPK Lighting
New World Hotel

Landscape lighting seamlessly integrates with nature and enhances the immersive hospitality experience.

Landscape Lighting

New World Hotel

Qingyuan, China

FAQ

Model: SP-DKP-F170
What is the IP rating of the SP-DKP-F170?
The SP-DKP-F170 carries an IP66 protection rating. Its tightly sealed aluminum alloy housing protects against dust ingress and powerful water jets from any direction, ensuring safety in permanent outdoor environments.
What control protocols are supported by this fixture?
It functions seamlessly in both independent auto-run modes and professional DMX512 modes. We also provide RDM, DALI, and 0–10V dimming configurations for advanced integration into building control systems.
Is the mounting angle of the spot light adjustable?
Yes, the SP-DKP-F170 features a highly adaptable base bracket that supports up to 180° of vertical rotation, allowing for precise beam targeting on architectural structures or landscape features.
How does the RGBW mode work regarding power consumption?
The fixture operates with a constant power mode setup. For the 24P version, the maximum power is 40W. It safely generates dynamic mixed colors across all four channels (Red, Green, Blue, White) without exceeding its power rating.

Accessories

Accessories can be supplied according to installation method, wiring layout and control configuration.

SP-DKP-F170 end cap accessory
End Cap
Fixture end protection
SP-DKP-F170 signal input cable accessory
Signal Input Cable
DMX / signal connection
SP-DKP-F170 adapter cable accessory
Adapter Cable
Power or signal adaptation
SP-DKP-F170 Y-type cable accessory
Y-Type Cable
Branch wiring support
SP-DKP-F170 waterproof connector accessory
Waterproof Connector
Outdoor connection sealing
