Outdoor ArchitecturalLED Linear StripModel: LLS-OP-W30B

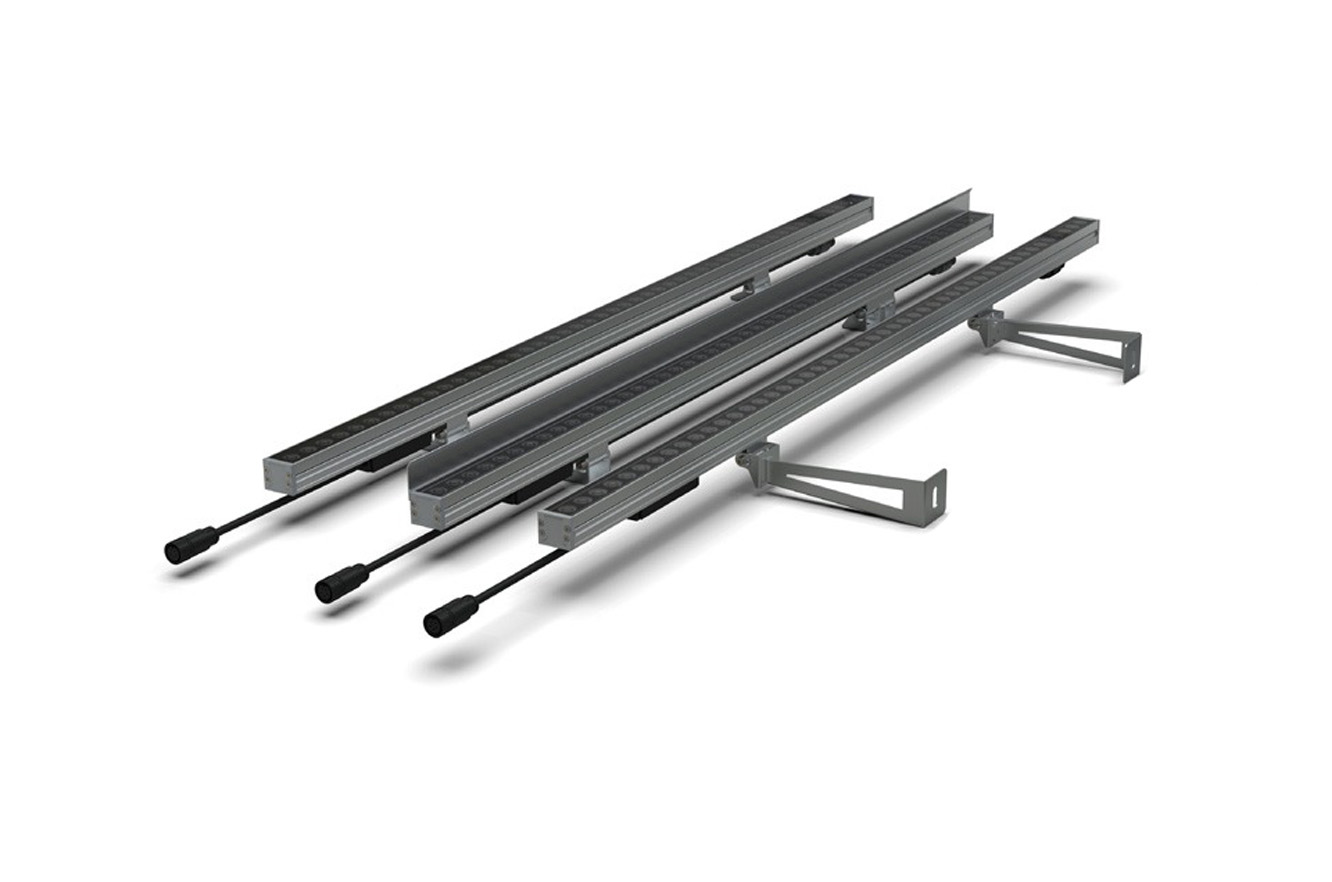

LLS-OP-W30B 6–21W IP66 ETL listed outdoor LED linear strip with tempered glass panel and precision beam angles for architectural facade lighting

LLS-OP-W30B

6–21W IP66 LED Linear Strip — ETL Listed, CE Certified

The LLS-OP-W30B is a 6–21W IP66 outdoor LED linear strip featuring high-transparency tempered glass and precision beam optics for architectural facade, outline, and wash lighting. ETL listed for North America and CE certified for Europe. Six beam angle options — 15°, 30°, 45°, 60°, 20×40°, and 30×40° — cover narrow-throw facade grazing through broad linear wash. Available in static white (2700K/3000K) and RGBW. Supports DMX512/RDM and 0–10V control. Three length options: 313mm, 615mm, and 1220mm.

LLS-OP-W30B LED linear strip dimension drawing with tempered glass panel
IP66Outdoor protection
IK06Impact resistance
ETLUS & Canada projects
CEEuropean compliance
3-YearWarranty support

Color & Optic

Color Options

2700K
3000K
RGBW
Static white range 2700K/3000K. Custom CCT available.

Beam Angle Options

15 degree narrow beam
15°
30 degree beam
30°
45 degree beam
45°
60 degree wide beam
60°
20x40 degree asymmetric beam
20×40°
30x40 degree asymmetric beam
30×40°
6 beam angles including asymmetric distributions.

Product Specifications

Power6W / 11W / 21W
LED TypesSMD2835
ColorStatic White / RGBW
Input Voltage24V DC / 100–277V AC
Housing MaterialAluminum alloy 6063 / silver
PanelTempered glass
Control ModeDMX512 / RDM / Steady
Beam Angle15° / 30° / 45° / 60° / 20×40° / 30×40°
IP RatingIP66
Impact RatingIK06
Size313 / 615 / 1220mm × W30mm
Lifetime50,000 hrs
Warranty3 years
Operating Temperature−20°C to +45°C

Model Configuration

Model Length Power (Max) Color Options Lumen Output Packing Info
LLS-OP-W30B-L3 L313mm 6W
2700K3000K
RGBW
240lm
150lm
 Weight: 0.32/0.54kg ±5%Qty/Ctn: 32 Units/CtnCarton: 66 × 32 × 22.5 cm
LLS-OP-W30B-L6 L615mm 11W
2700K3000K
RGBW
440lm
275lm
 Weight: 0.63/0.71kg ±5%Qty/Ctn: 16 Units/CtnCarton: 66 × 32 × 22.5 cm
LLS-OP-W30B-L12 L1220mm 21W
2700K3000K
RGBW
840lm
520lm
 Weight: 1.26/1.42kg ±5%Qty/Ctn: 16 Units/CtnCarton: 125.5 × 32 × 23 cm

Lumen configurations based on standard models. All variants: IP66, IK06, ETL listed, CE certified, 3-year warranty.

Advantages

Tempered Glass Panel

High-transparency tempered glass delivers excellent impact resistance alongside the IP66 structural waterproofing, keeping the optical path clear and protected in exposed architectural positions.

Six Precision Beam Angles

15°, 30°, 45°, 60°, 20×40°, and 30×40° cover narrow facade grazing through broad linear wash. Engineered to control lateral spill without compromising output.

Static White and RGBW

2700K/3000K static white for hospitality and commercial facades; RGBW for full dynamic color programming via DMX512/RDM integration.

Full-Structure Waterproofing

IP66-rated structural waterproofing protects from end to end. Suitable for permanent outdoor installation on building facades, bridge structures, and landscaped environments. Rated to +45°C operating temperature.

6063 Aluminum with Anti-Oxidation Finish

The entire fixture body is extruded 6063 aluminum with anti-oxidation surface treatment, combining high thermal conductivity with corrosion resistance for long-term outdoor service.

50,000-Hour Rated Lifetime

50,000-hour lifetime rating with a 3-year full-assembly warranty. Three lengths from 313mm to 1220mm. Ideal for concealed or surface-mounted installation.

Impressions

LLS-OP-W30B historic waterfront LED linear strip lighting impression | TPK Lighting
LLS-OP-W30B architectural facade LED linear strip lighting | TPK Lighting
LLS-OP-W30B outdoor building outline lighting | TPK Lighting

Downloads

Specification Sheets

Certification Documents

Technical Files

Application Media

Certifications & Compliance

ETL North America ETL listed for US and Canada project documentation. Meets ANSI/UL outdoor luminaire safety standards. Download ETL certificate CE European Market Certified for European LVD and EMC requirements for outdoor luminaires. Download CE certificate
RoHS Environmental Compliance RoHS hazardous substance restriction documentation available with product files on request. Available with product files

Related Projects

Jinyun Historic Waterfront LED linear strip facade lighting | TPK Lighting
Jinyun Historic Waterfront

Warm 2700K linear strips rejuvenate historic waterfront facades without drilling into protected masonry.

Heritage Architecture Lighting

Jinyun Historic Waterfront

Jinyun, China
Hangzhou International Expo Center facade lighting | LED linear strip by TPK Lighting
Hangzhou International Expo Center

Wall washers, linear strips and floodlights compose a comprehensive nighttime facade at scale.

Large-Scale Facade Lighting

Hangzhou International Expo Center

Hangzhou, China
Sichuan Luojiang Student Incubation Base linear strip lighting | TPK Lighting
Luojiang Student Incubation Base

LED linear strips trace traditional roof ridges and architectural frames at a modern campus complex.

Architectural Outline Lighting

Luojiang Student Incubation Base

Luojiang, Sichuan, China

FAQ

Model: LLS-OP-W30B
What is the IP rating and lifetime of the LLS-OP-W30B?
The LLS-OP-W30B is rated IP66 and 50,000 hours, with a 3-year full-assembly warranty. Operating temperature range is −20°C to +45°C. The tempered glass panel provides added impact resistance alongside the IP66 structural waterproofing.
Is the LLS-OP-W30B ETL listed for North American projects?
Yes. The LLS-OP-W30B carries ETL listing for US and Canada projects, meeting ANSI/UL outdoor luminaire safety requirements. ETL and CE certificates are available on this page. Contact ES2@topkinglite.com for project-specific documentation.
Which beam angle should I choose for my project?
The 15° is a narrow throw for tall facades or long distances. 30° and 45° suit standard facade grazing at typical mounting distances. 60° works for close-in broad wash. The 20×40° and 30×40° asymmetric distributions control horizontal spread while maintaining vertical coverage — useful for wall grazing where you don't want spill onto adjacent surfaces.
What control systems are compatible with the LLS-OP-W30B?
The fixture supports standard DMX512/RDM protocol for robust RGBW dynamic programming, and Steady modes for basic on/off operations in architectural applications.

Accessories

Accessories available per installation method, wiring layout, and control configuration.

LLS-OP-W30B accessory - End Cap
End Cap
Fixture end protection
LLS-OP-W30B accessory - Signal Input Cable
Signal Input Cable
DMX / signal input
LLS-OP-W30B accessory - Adapter Cable
Adapter Cable
Power or signal transition
LLS-OP-W30B accessory - T-Cable
T-Cable
Branch wiring connection
LLS-OP-W30B accessory - Waterproof Connector
Waterproof Connector
Outdoor cable sealing
