Outdoor ArchitecturalLED Pixel LightModel: LPM-HEX130
LPM-HEX130
The LPM-HEX130 is an outdoor architectural LED pixel light primarily used for building exterior and landscape lighting. It features low power consumption, high luminous efficacy, and reliable IP65 weather resistance. Supporting dynamic RGBW mixing and intelligent program control, it is an ideal solution for facades, bridges, tunnels, and structural highlights requiring decorative or functional outdoor illumination.
Color & Optic
Color Options
Beam Options
Product Specifications
Model Configuration
| Model | Dimension | Power (Max) | Color Options | Lumen Output | Packing Info |
|---|---|---|---|---|---|
| LPM-HEX130 | Φ95mm | 12W |
WRGB
RGBW
RGB
|
840 lm 420 lm
|
Weight: 0.38kg ±5%Qty/Ctn: 23 pcsCarton: 52.5 × 33 × 27 cm |
Configuration summary: Available in multiple white CCTs, RGB, and RGBW with 12W combined power (3+9W), delivering up to 840 lm. Housed in robust aluminum alloy and PC cover with IP65 rating for reliable architectural integration.
Advantages
Three-Dimensional Double-Sided Lighting
Double-sided light emission delivers a more three-dimensional and layered lighting effect, enhancing visual depth on building structures.
Intelligent Program Control
Built-in intelligent program control enables flexible customization of dynamic lighting scenes and multi-color effects for striking visual displays.
Multi-Color Optional
Offers a wide range of CCT and RGB/RGBW color options to meet diverse decorative and functional facade lighting requirements.
Versatile Installation Options
Supports multiple installation methods to seamlessly adapt to diverse architectural layouts, complex grids, and varied mounting scenarios.
Indoor and Outdoor Dual Use
Engineered for versatility, its IP65 housing allows seamless integration into both exterior architectural facades and interior ambient environments.
Anti-Glare Design
Features an optimized anti-glare optical design, providing soft and comfortable 120° diffused lighting without harsh visual stimulation.
Application Scenarios
Building Facade Lighting
Ideal for curtain walls, structural accents, commercial exteriors, and large-scale architectural media grids.
Bridge and Infrastructure Lighting
Suitable for highlighting bridge suspension cables, tunnels, guardrails, and defining municipal infrastructure elements.
Hotel and Retail Exterior Lighting
Perfect for decorative wall layouts, hotel entrance highlights, and elevating the aesthetics of high-end retail venues.
Landscape and Public Space Lighting
Enhances public squares, landscape structures, fences, and immersive urban nightscape installations.
The LPM-HEX130 is designed for versatile outdoor architectural lighting projects where customizable node placement, reliable IP65 weather resistance, and dynamic color programming are required.

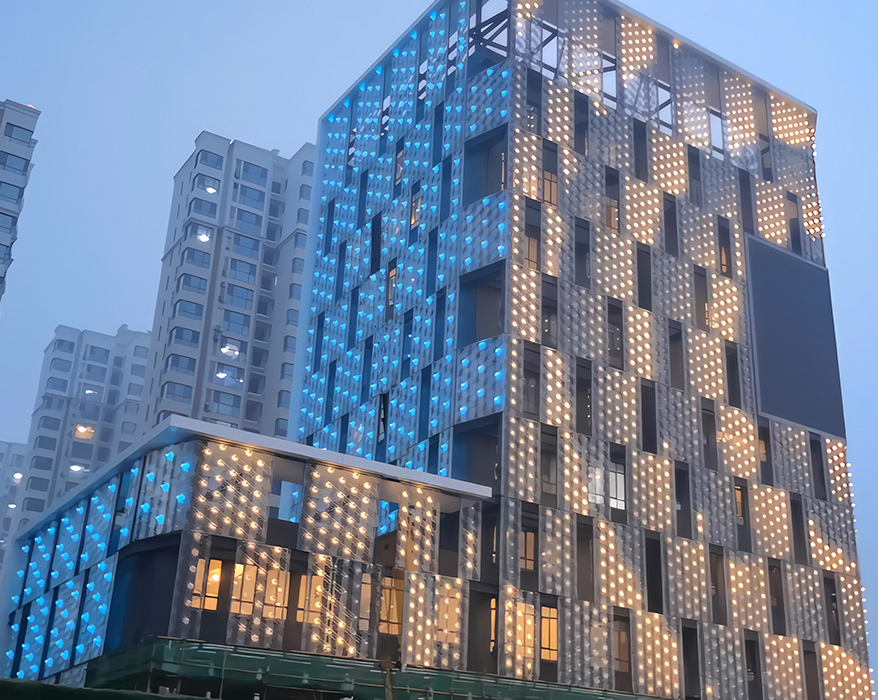

Impressions
Downloads
Specification Sheets
Certification Documents
Technical Files
Testing Reports & Application Media
Certifications & Compliance
Related Projects
FAQ
Model: LPM-HEX130What is the IP rating of the LPM-HEX130?
What control systems are compatible with the LPM-HEX130?
What color options are available for the LPM-HEX130?
What is the power and lumen output of the LPM-HEX130?
Accessories
Accessories can be supplied according to installation method, wiring layout and control configuration.
